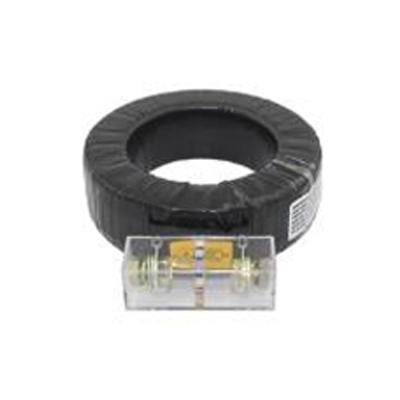

SR Series Current Transformers

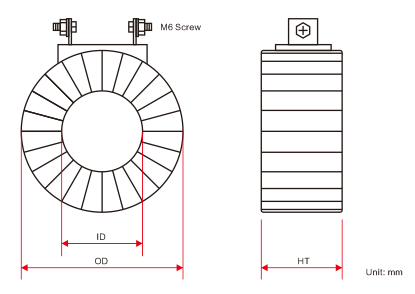

Model | Primary | Secondry | ID | OD | Thickness H(mm) | ||||||||||
Class 3.0 | Class 1.0 | Class 0.5 | |||||||||||||
2.5VA | 5VA | 15VA | 10VA | 15VA | 20VA | 30VA | 10VA | 15VA | 20VA | 30VA | |||||
SR1 | 60A | 1A、5A | 30 | 70 | 40 | – | – | – | – | – | – | – | – | – | – |
100A | 1A、5A | 30 | 70 | 35 | 40 | – | – | – | – | – | – | – | – | – | |
150A | 1A、5A | 30 | 70 | 30 | 35 | – | – | – | – | – | – | – | – | – | |
200A | 1A、5A | 30 | 70 | 30 | 40 | – | – | – | – | – | – | – | – | – | |
SR2 | 150A | 1A、5A | 40 | 80 | 40 | 40 | – | – | – | – | – | – | – | – | – |
200A | 1A、5A | 40 | 80 | 30 | 30 | – | – | – | – | – | – | – | – | – | |
300A | 1A、5A | 40 | 80 | 30 | 30 | 40 | 40 | 40 | – | – | 40 | – | – | – | |
400A | 1A、5A | 40 | 80 | 30 | 30 | 35 | 35 | 35 | 40 | – | 40 | 40 | – | – | |
SR3 | 200A | 1A、5A | 45 | 85 | 35 | 40 | – | – | – | – | – | – | – | – | – |
300A | 1A、5A | 45 | 85 | 30 | 30 | 40 | 40 | – | – | – | 40 | – | – | – | |
400A | 1A、5A | 45 | 85 | 30 | 30 | 35 | 35 | 40 | 40 | – | 40 | 40 | – | – | |
SR4 | 400A | 1A、5A | 57 | 95 | 30 | 30 | 40 | 30 | 35 | 40 | – | 40 | 40 | – | – |
500A | 1A、5A | 57 | 95 | 30 | 30 | 35 | 30 | 35 | 40 | – | 35 | 40 | – | – | |
600A | 1A、5A | 57 | 95 | 30 | 30 | 35 | 30 | 35 | 40 | 40 | 35 | 40 | 40 | – | |
800A | 1A、5A | 55 | 99 | 30 | 30 | 30 | 30 | 30 | 35 | 40 | 30 | 35 | 40 | 40 | |
SR5 | 600A | 1A、5A | 70 | 110 | 30 | 30 | 40 | 35 | 40 | – | – | 35 | 40 | – | – |
800A | 1A、5A | 70 | 110 | 30 | 30 | 30 | 30 | 30 | 35 | 40 | 30 | 35 | 40 | – | |
1000A | 1A、5A | 66 | 110 | 30 | 30 | 30 | 30 | 30 | 35 | 40 | 30 | 35 | 40 | 40 | |
1200A | 1A、5A | 66 | 110 | 30 | 30 | 30 | 30 | 30 | 30 | 35 | 30 | 30 | 35 | 40 | |
SR6 | 800A | 1A、5A | 83 | 122 | 30 | 30 | 30 | 30 | 30 | 35 | 40 | 30 | 35 | 40 | – |
1000A | 1A、5A | 83 | 122 | 30 | 30 | 30 | 30 | 30 | 35 | 40 | 30 | 35 | 40 | 40 | |
1200A-1600A | 1A、5A | 83 | 125 | 30 | 30 | 30 | 30 | 30 | 30 | 35 | 30 | 30 | 35 | 40 | |
SR7 | 1200A | 1A、5A | 110 | 148 | 30 | 30 | 35 | 30 | 40 | 40 | 40 | 30 | 40 | 40 | 40 |
1600A | 1A、5A | 110 | 148 | 30 | 30 | 30 | 30 | 30 | 35 | 40 | 30 | 30 | 35 | 40 | |
2000A-2500A | 1A、5A | 107 | 152 | 30 | 30 | 30 | 30 | 30 | 35 | 35 | 30 | 30 | 35 | 35 | |
SR8 | 1600A | 1A、5A | 120 | 158 | 30 | 30 | 30 | 30 | 35 | 40 | 40 | 35 | 35 | 40 | 40 |
2000A | 1A、5A | 120 | 160 | 30 | 30 | 30 | 30 | 30 | 35 | 40 | 30 | 35 | 35 | 40 | |
2500A | 1A、5A | 118 | 162 | 30 | 30 | 30 | 30 | 30 | 35 | 40 | 30 | 35 | 35 | 40 | |
3000A | 1A、5A | 115 | 163 | 30 | 30 | 30 | 30 | 30 | 35 | 40 | 30 | 35 | 35 | 40 | |
SR9 | 2000A-2500A | 1A、5A | 130 | 170 | 30 | 30 | 30 | 30 | 30 | 35 | 40 | 30 | 35 | 35 | 40 |
3000A-3500A | 1A、5A | 127 | 173 | 30 | 30 | 30 | 30 | 30 | 35 | 40 | 30 | 35 | 35 | 40 | |
SR10 | 2500A-3000A | 1A、5A | 140 | 180 | 30 | 30 | 30 | 30 | 30 | 35 | 40 | 30 | 35 | 35 | 40 |
3500A | 1A、5A | 139 | 183 | 30 | 30 | 30 | 30 | 30 | 35 | 40 | 30 | 35 | 35 | 40 | |
4000A | 1A、5A | 137 | 185 | 30 | 30 | 30 | 30 | 30 | 35 | 40 | 30 | 35 | 35 | 40 | |
The SR series size parameters can be customized according to customer requirements.
