Short Description:

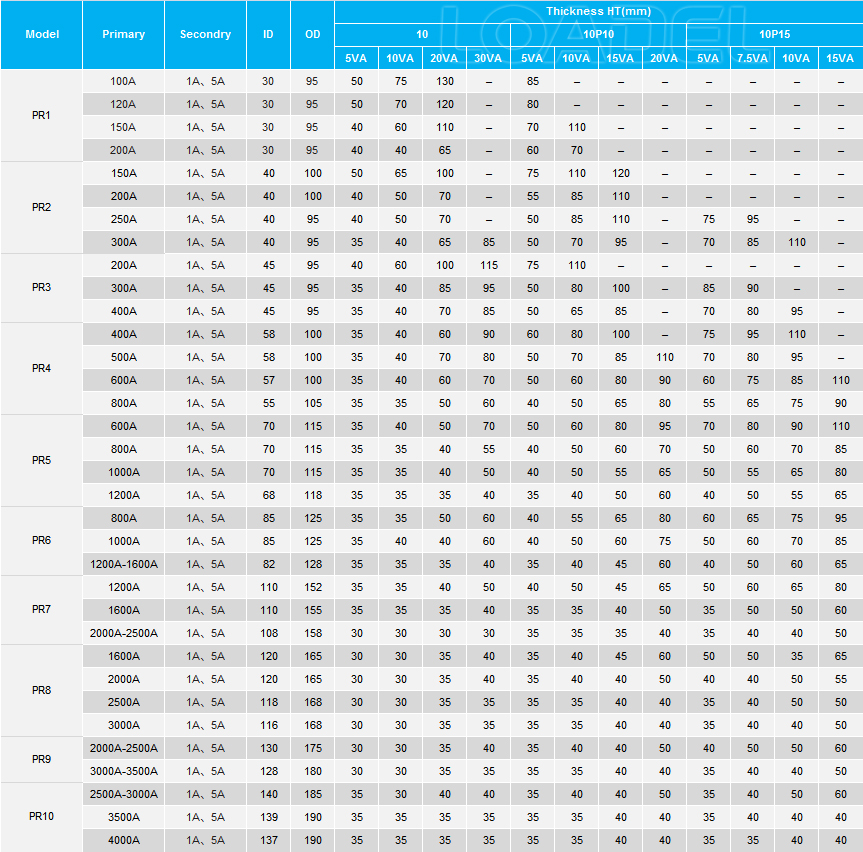

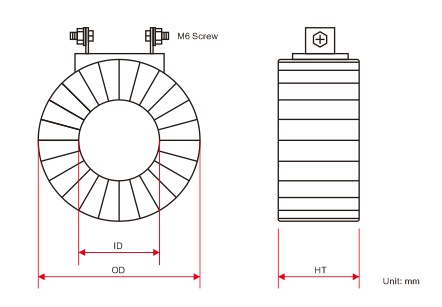

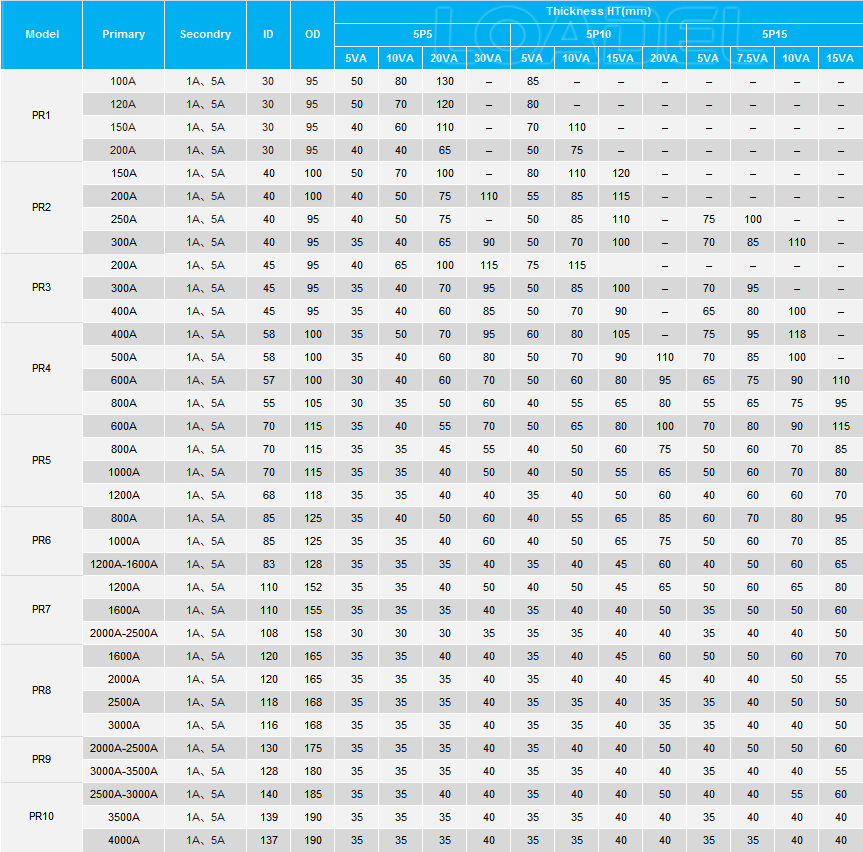

ModelPrimarySecondryIDODThickness HT(mm)5P55P105P155VA10VA20VA30VA5VA10VA15VA20V

• Frequency Range: 50Hz-60Hz
• Rated Power-Frequency Withstand Voltage (rms): 3kV AC (1 min)
• Highest voltage for equipment: 0.72kV AC
• Rated short-time thermal current(lth): 60ln
• Rated dynamic current(ldyn): 2.5lth
• Continuous overload: 1.2ln
• Operating temperature: -20°C to 75°C
• Rated security coefficient: FS<5
• Standard: IEC 61869-2
